GOES-East Geostationary Lightning Mapper Satellite

Current UTC Time =
Geostationary Lightning Mapper Legend
About Geostationary Lightning Mapper

GLM Extent Density of Lightning is the number of lightning flashes that occur within a grid cell over a given period of time, and was the first GLM product routinely available to NWS forecasters. Many years of research and operational lightning mapping array demonstrations have shown FED to be the preferred total lightning product. FED best portrays, in a single product, the quantity of GLM flashes (storm trending applications) and extent of GLM events (depicting lightning areal coverage). Additional gridded GLM products are under evaluation for future deployment.

Lightning Graphic

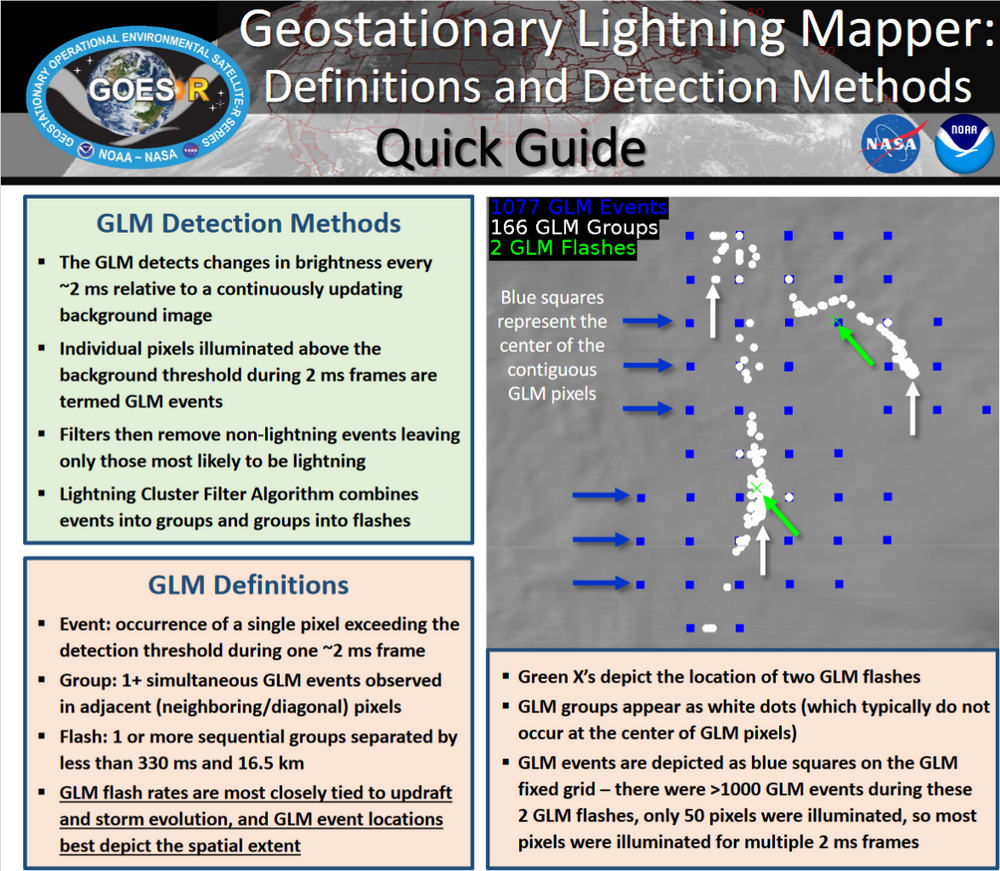

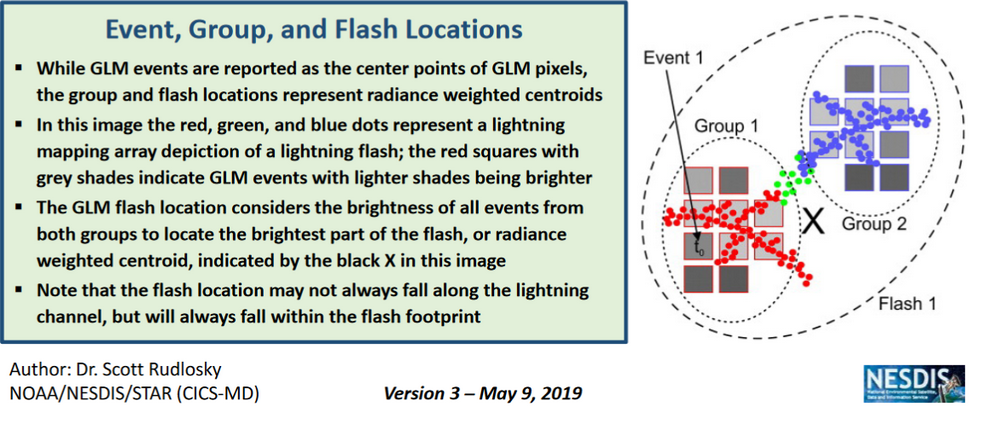

Lightning - Event, Group & Flash Locations Lightning Document One

Lightning Observations

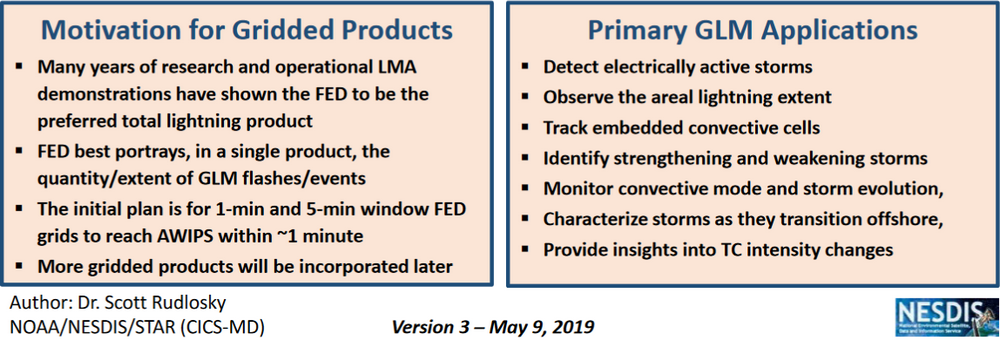

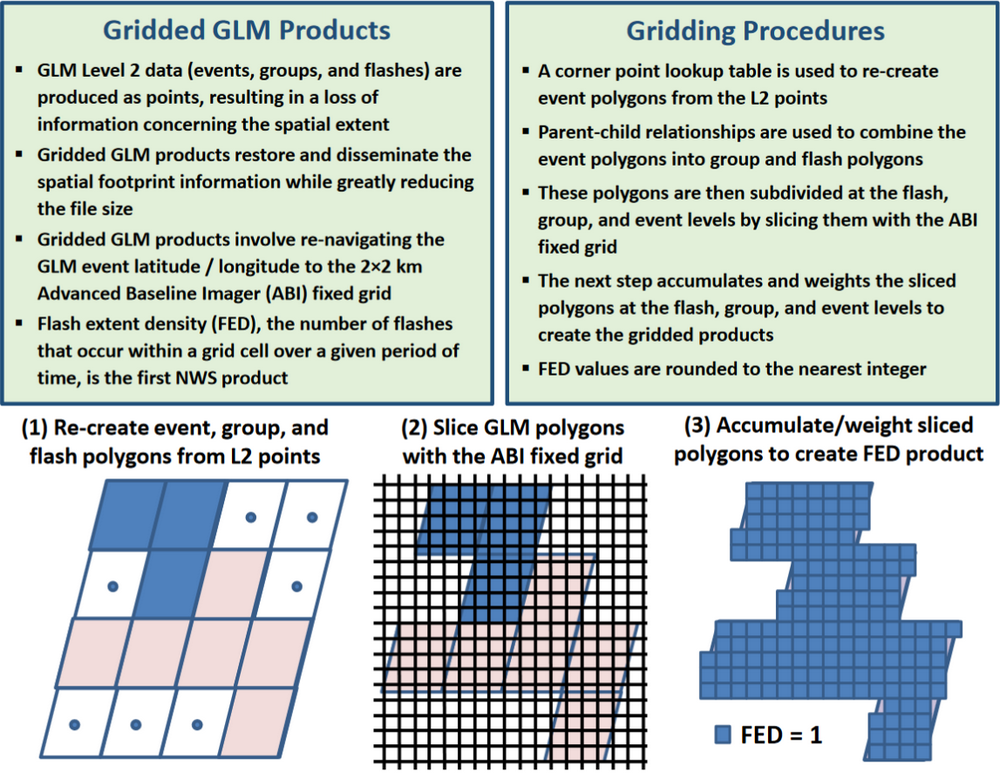

Lightning Gridded

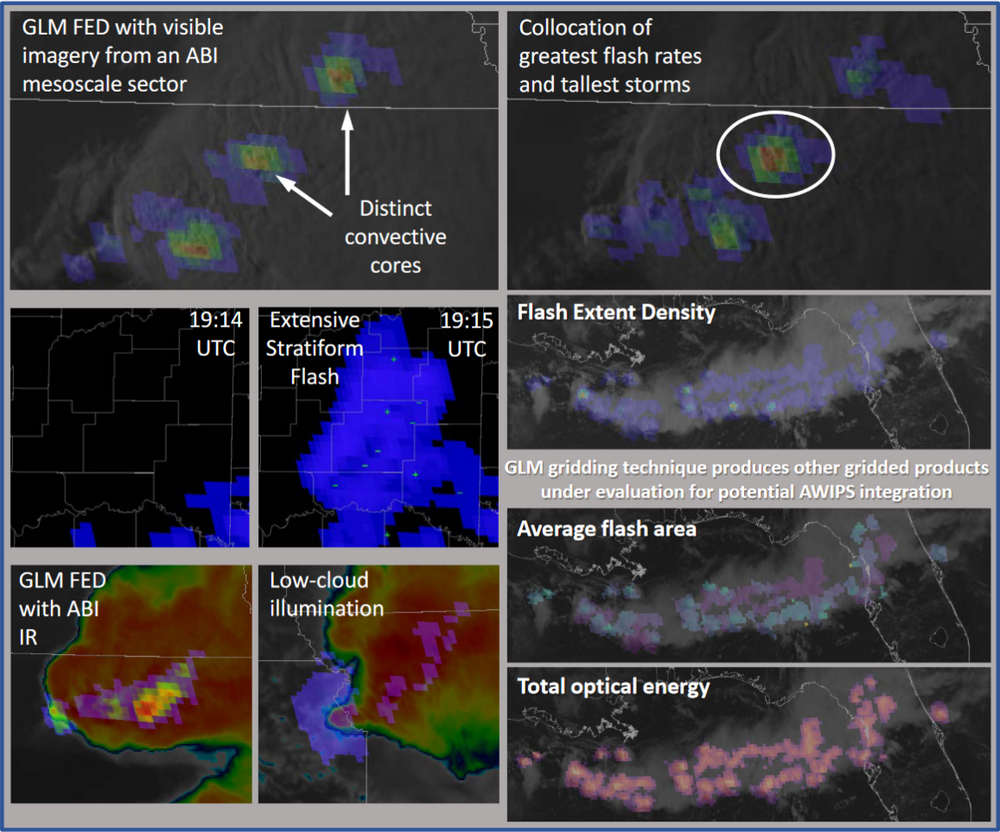

Lightning Products & Applications
Lightning Images

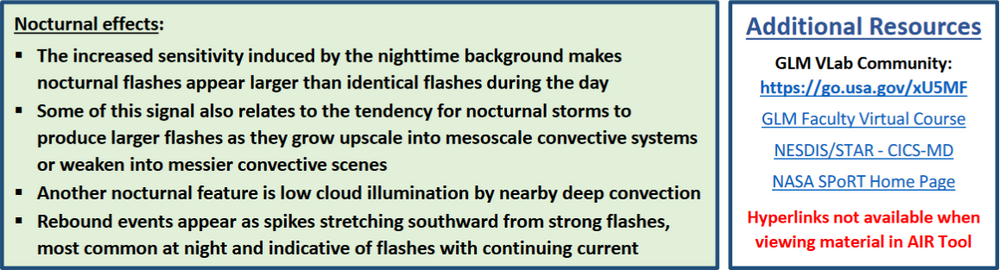

Lightning Nocturnal Effects

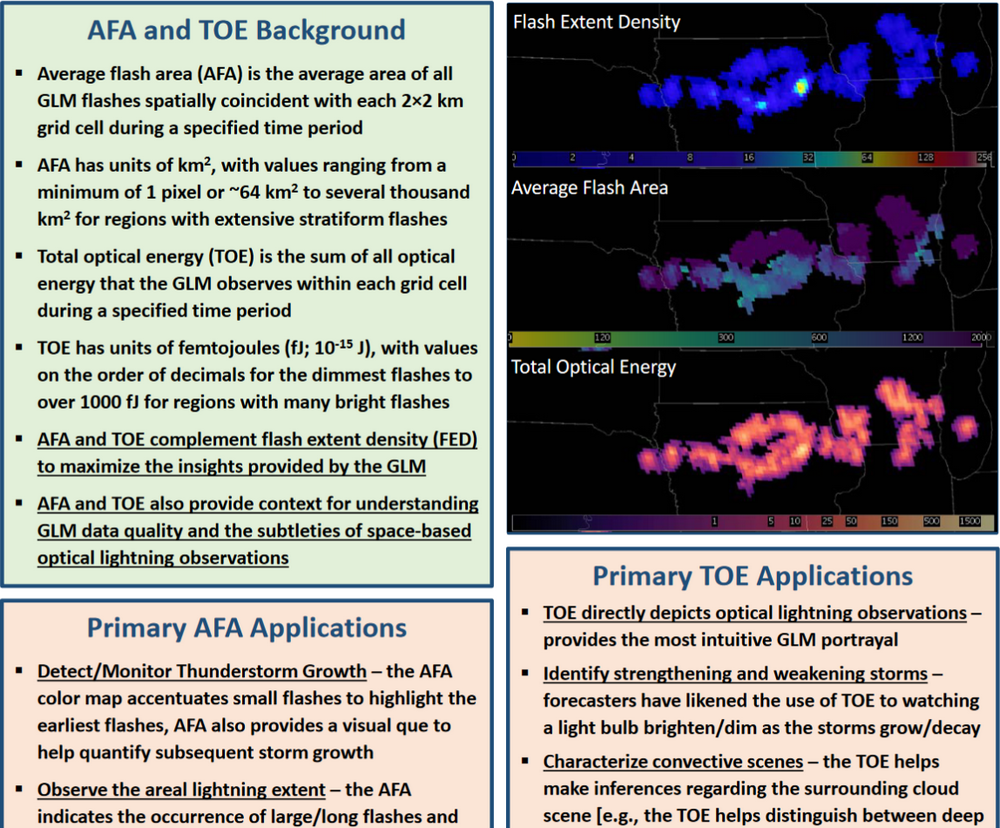

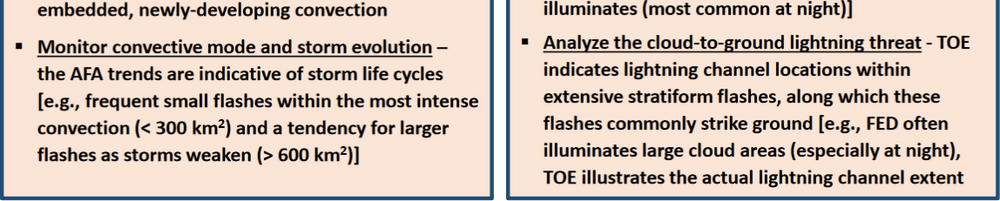

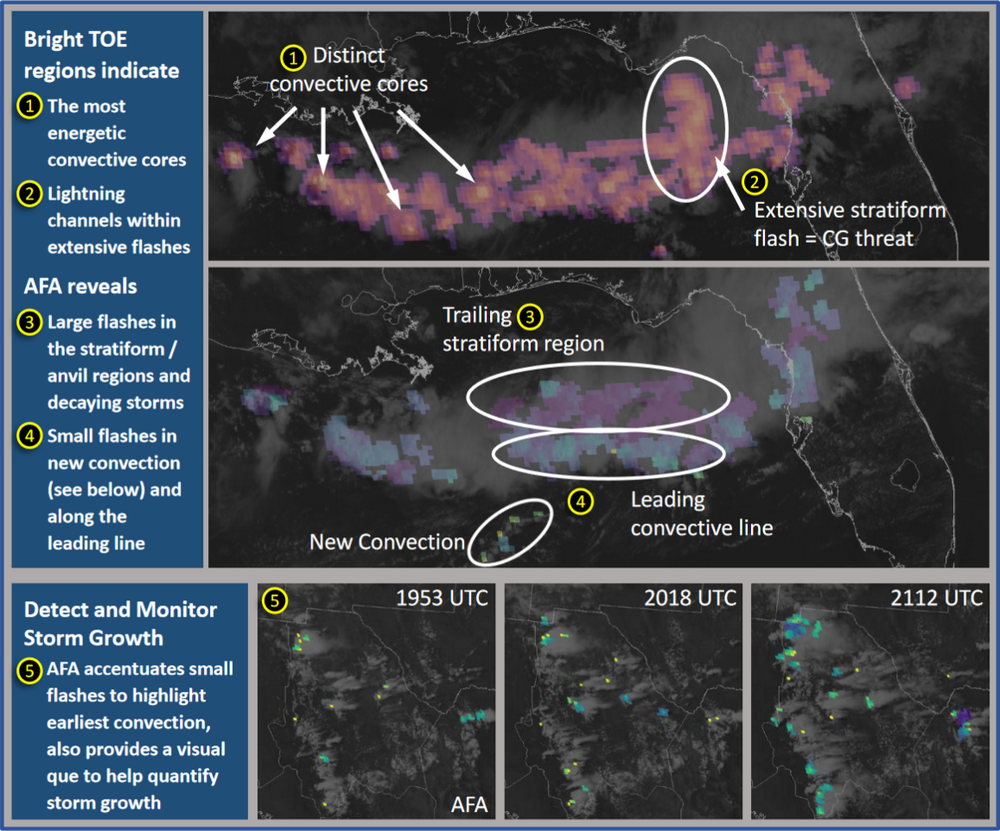

Lightning AFA & Toe Background
Lightning Analyze

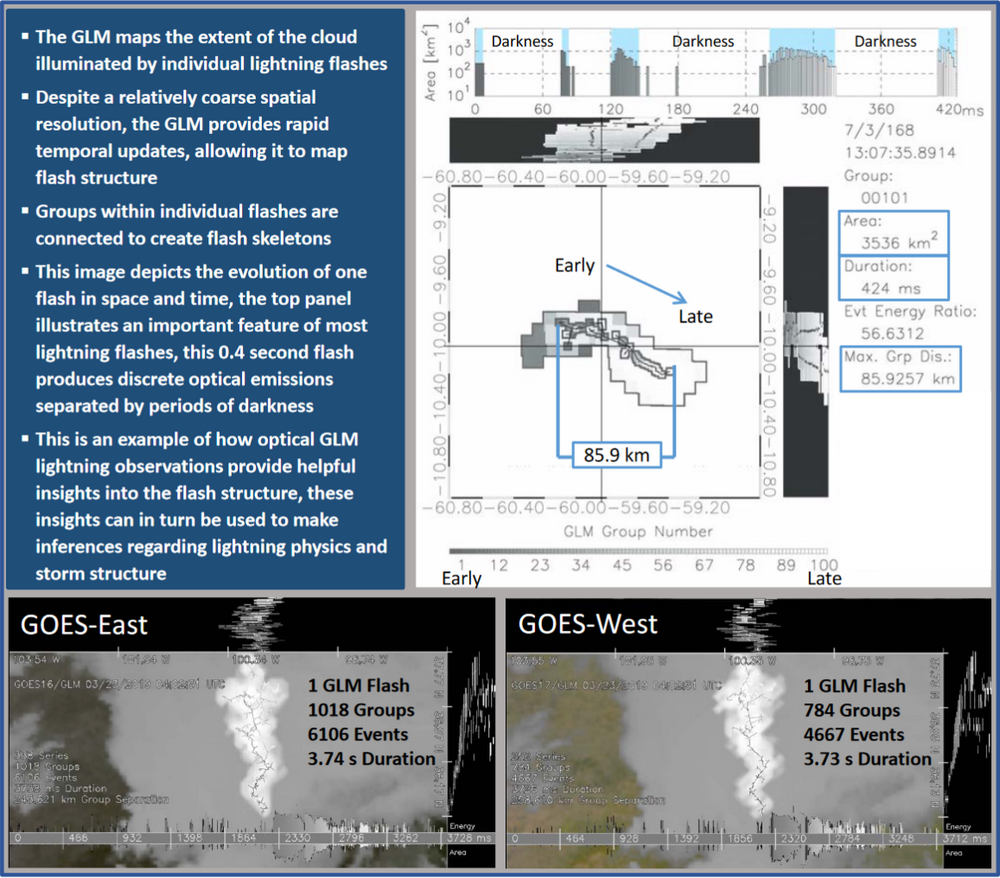

Lightning Example

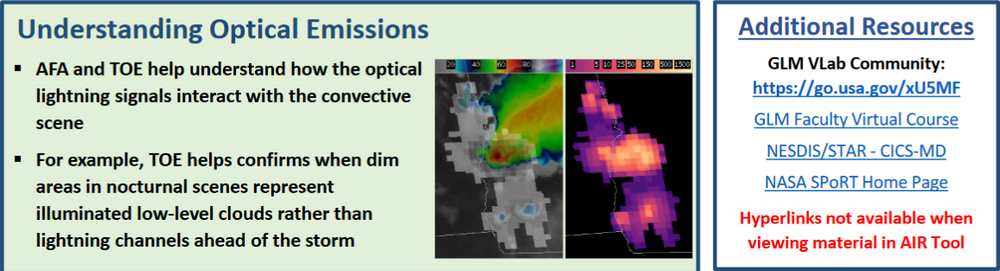

Lightning Optical Emissions
Lightning Various

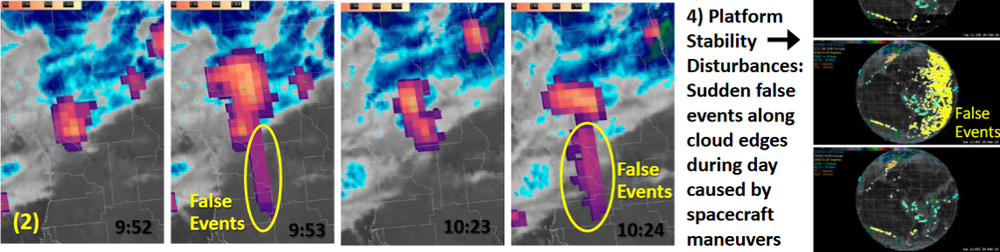

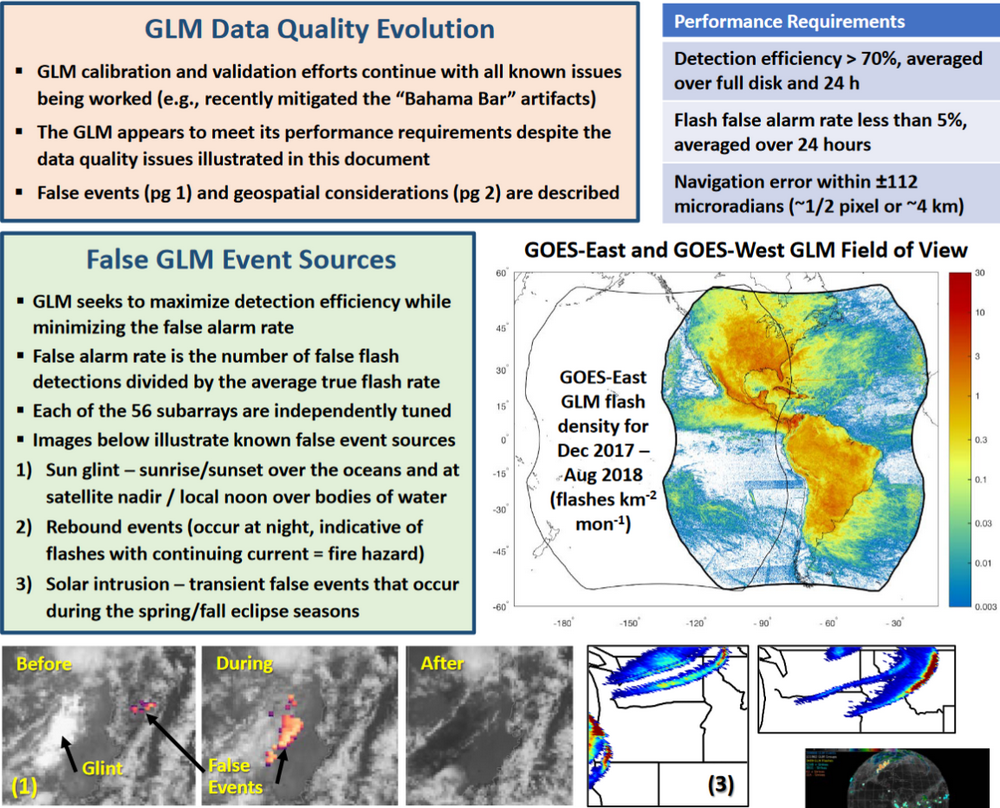

Lightning False Events

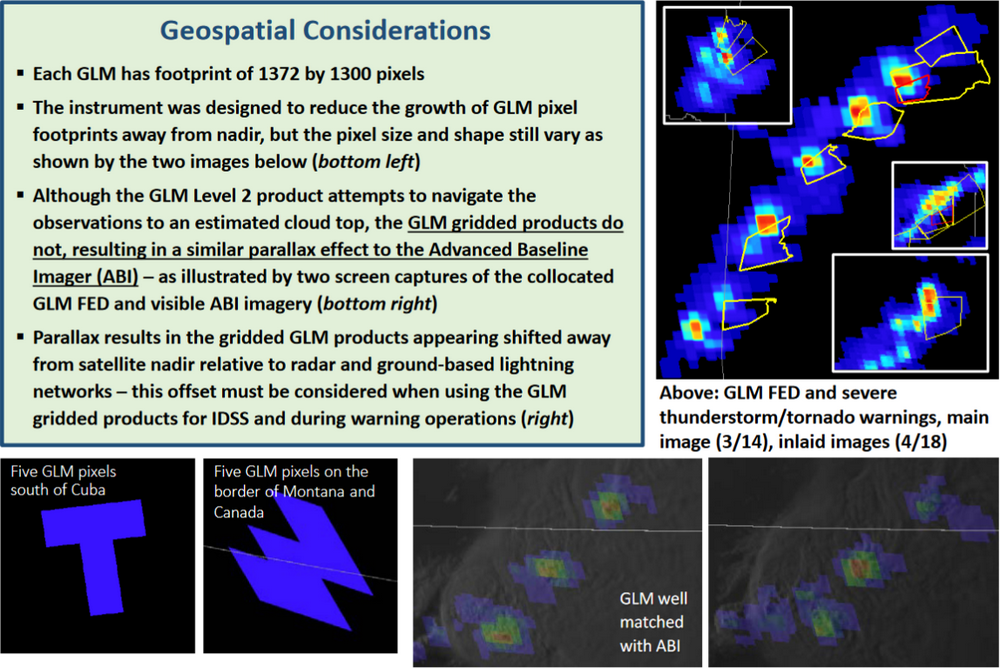

Lightning Geospatial Considerations Lightning Map
